Introduction

Frame animation based on DOE can be used for laser applications such as landscape lights and stage effect lights. The production of DOE components based on resin grating patterns is inseparable from lithography masters. Patterned grating masters based on two-step lithography are the necessary basis for large-scale fabrication of patterned gratings such as UV transfer printing and nanoimprinting. UPOLabs can provide pattern motherboard design and processing for the majority of laser manufacturers.

Custom Instructions

1. Provide design draft or animation frame

2. 2.Provide wavelength, light source parameter information, divergence angle, number of frames, working distance, pattern size and other parameters

3. Central zero position or occlusion design for clear energy efficiency

4. Confirm the above information as the product specification, sign the contract, and pay in advance

5. 4~6 weeks is the standard processing cycle, the default size is 8*8mm

When the customer gets the finished product, the performance of the motherboard can be verified, and then UPOLabs arranges imposition copying and enters into mass production.

Animation case

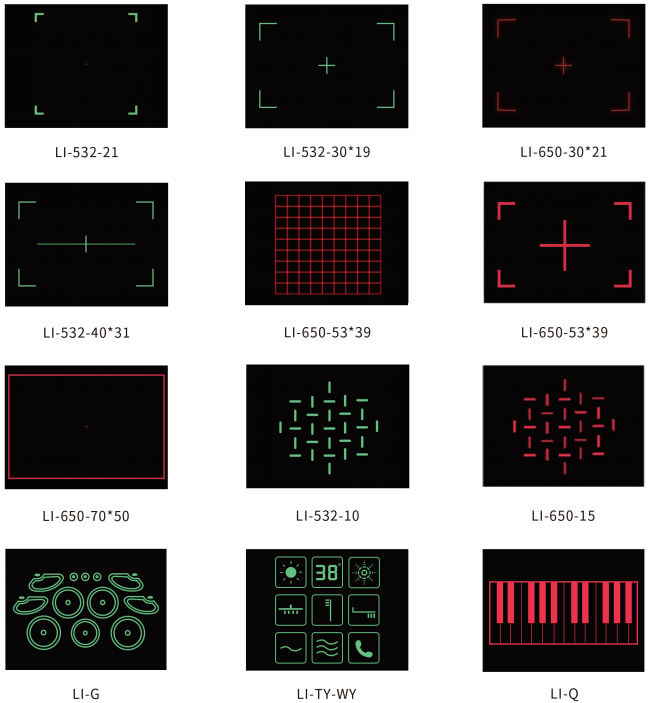

More pattern devices, welcome to order
