Introduction
The version of wavelength 363-420nm, 1920*1080 resolution, 10.8µm micromirror Pitch, divided into ultra-high speed version, smart ultra-high speed version, super capacity version, the ultra-high speed version uses 16GByte/128Gbit memory, ultra-high speed frame rate > 20KHz, smart ultra-high speed version with smart algorithm, Super capacity version of on-board SSD storage, starting from 3TB, multiple capacities are optional.

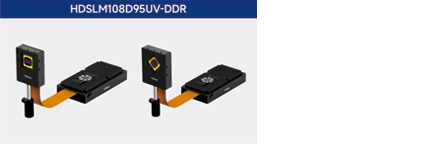

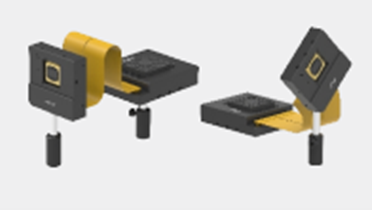

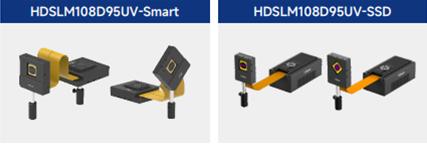

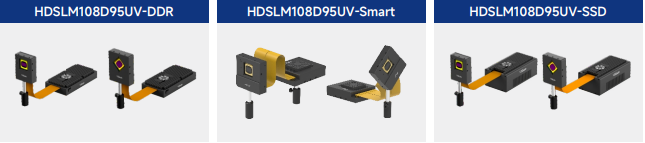

Product Image
Specifications
| Type | HDSLM108D95UV-Smart | HDSLM108D95UV-SSD | HDSLM108D95UV-Smart | |
| Resolution | 1920*1080 | |||
| Micromirror Pitch | 10.8μm | |||
| Wavelength | 363-420nm | |||
| Array Diagonal Size | 0.95” | |||
| Micromirror Array Optical Efficiency | 85% | |||
| Reflectivity | 88% | |||
| Fill Factor | 92% | |||
| Frame Rate | 20746Hz/617.05Hz/3Hz | |||
| Bit Depth | 1-16bit | |||
| Smart algorithms can be customized | Dynamic ground glass, random speckle, rotating grating, periodic grating, etc | / | Dynamic ground glass, random speckle, rotating grating, periodic grating, etc | |
| RAM Capacity | / | SSD 3T/6T/12T | / | |
| Input Interface | USB3.0 | Gigabit Ethernet/USB3.0 | USB3.0 | |
| DMD Datum Angle | Horizontal design | Horizontal design/Oblique 45° design | Horizontal design/Oblique 45° design | |
Application
Industrial
• Direct Imaging Lithography
• Digital Imaging Lithography
• Flat Panel Lithography
• Laser Marking
• Digital Plate making
• LCD and OLED Repair
• Computer to Plate Printers
• SLA 3D Printers
• 3D Scanners for Machine Vision and Factory Automation
• Selective Laser Sintering (SLS)
• Rapid Prototype Machines
• 3D Printers
• Industrial Printing
• Flexographic Printing
• Dynamic Grayscale Laser Marking and Coding
• Repair and Ablation
Medical
• Spectroscopy
• Phototherapy Devices
• Ophthalmology
• Direct Manufacturing
• Hyperspectral Imaging
• 3D Biometrics
• Confocal Microscopes
• Photo Therapy
• Hyper-Spectral Imaging
• 3D Machine vision and 3D Biometrics
Display
• 3D Imaging Microscopes
• Adaptive Illumination
• Augmented Reality and Information Overlay
• Optical Switching
• Infrared Scene Projection
