HDSLM54D67
Spatial Light Modulator
HDSLM54D67
HDSLM54D67
HDSLM54D67 series spatial light modulators are developed based on the DLP670S,it has resolution of 2716*1600 ,inch diagonal arrays of 0.67”,5.4μm micromirror pitch...

Contact us :sales@realic.cn

Introduction

The version of wavelength 420-700nm, 2716*1600 resolution, 5.4µm micromirror Pitch.

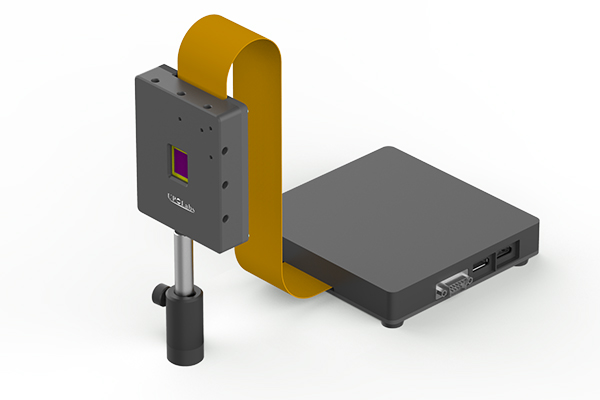

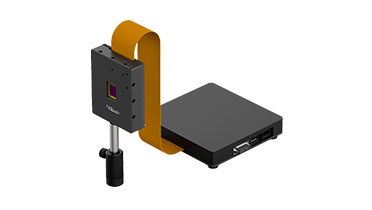

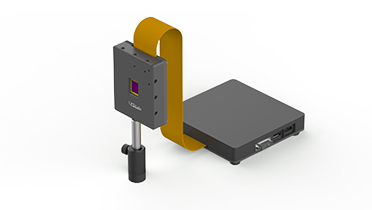

Product Image



Specifications

TypeHDSLM54D67
Resolution2716*1600
Micromirror Pitch5.4μm
Wavelength420-700nm
Array Diagonal Size0.5”
Micromirror Array Optical Efficiency84%
Reflectivity88%
Fill Factor93%
Frame Rate9523Hz/1190Hz
Bit Depth8-16bit
Onboard Storage/
RAM Capacity512Mbit*2
Configure InterfaceHDMI/DP
Input InterfaceUSB1.1
DMD Datum AngleHorizontal design

Application

Industrial

• Direct Imaging Lithography

• Digital Imaging Lithography

• Flat Panel Lithography

• Laser Marking

• Digital Plate making

• LCD and OLED Repair

• Computer to Plate Printers

• SLA 3D Printers

• 3D Scanners for Machine Vision and Factory Automation

• Selective Laser Sintering (SLS)

• Rapid Prototype Machines

• 3D Printers

• Industrial Printing

• Flexographic Printing

• Dynamic Grayscale Laser Marking and Coding

• Repair and Ablation

Medical

• Spectroscopy

• Phototherapy Devices

• Ophthalmology

• Direct Manufacturing

• Hyperspectral Imaging

• 3D Biometrics

• Confocal Microscopes

• Photo Therapy

• Hyper-Spectral Imaging

• 3D Machine vision and 3D Biometrics

Display

• 3D Imaging Microscopes

• Adaptive Illumination

• Augmented Reality and Information Overlay

• Optical Switching

• Infrared Scene Projection
