Introduction

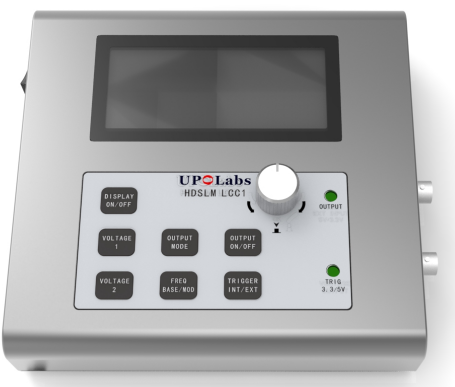

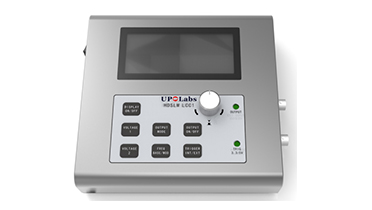

HDSLM LCC liquid crystal controller is compatible with all HDSLM LC liquid crystal functional devices, as well as common low pixel liquid crystal functional devices on the market. The high-precision quadrature driving voltage signal is output to the liquid crystal device by the BNC interface to complete the driving function. The output voltage amplitude and frequency of the HDSLM LCC liquid crystal controller can be adjusted by the knob on the front panel, and the external signal and computer are controlled through the USB interface. The working mode supports four working modes of high voltage/low voltage/internal modulation, and the trigger source of modulation mode can choose internal or external signal.

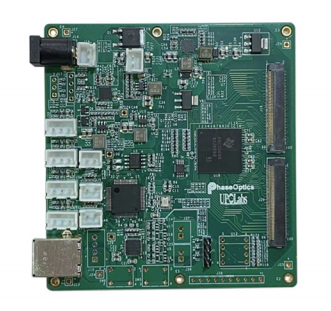

LCC1&LCC6&LCC96 PCBA
Specifications
| Version | HDSLM LCC1 | HDSLM LCC6 | HDSLM LCC96 |
| Number of output channels | single channel | six channel | Ninety-six channels |
| Operating mode | High Voltage/Low Voltage/Internal Modulation/External Modulation | High Voltage/Low Voltage/Internal Modulation/External Modulation | Square wave mode |
| Output voltage range | 0~±30V | 0~±30V | 0~±10.5V |
| Output Voltage Resolution | 1.0mV | 1.0mV | 5mV |
| Output current | 25mA max | 25mA max (per channel) | 0.1mA max (per channel) |
| data bit depth | 16bit | 16bit | 12bit |
| Output signal duty cycle | 50% | 50% | 50% |
| Number of input trigger signals | 1 input trigger signal | 6-channel input trigger signal | / |
| Input trigger signal frequency range | 0~300Hz, any duty cycle | 0~300Hz, any duty cycle | / |
| output signal frequency | 1K/2K/3K/4K/5KHz(±0.1Hz) | 6 signals share the base frequency and switch at the same time;1K/2K/3K/4K/5KHz(±0.1Hz) | 5KHz |
| Internal modulation signal frequency range | 0~300Hz,50% duty cycle | 0~300Hz,50% duty cycle | debug mode not supported |
| temperature range | 0~50℃ | 0~50℃ | 0~50℃ |
| Humidity range | 85% max | 85% max | 85% max |
| Preheat time | 30 minutes | 30 minutes | 30 minutes |
| Voltage change rate | 20V/μs | 20V/μs | 20V/μs |
| output signal connector | BNC | 6-in-1 aviation plug, through custom cable to BNC | FPC connector |
| input signal indication | green LED | green LED | green LED |

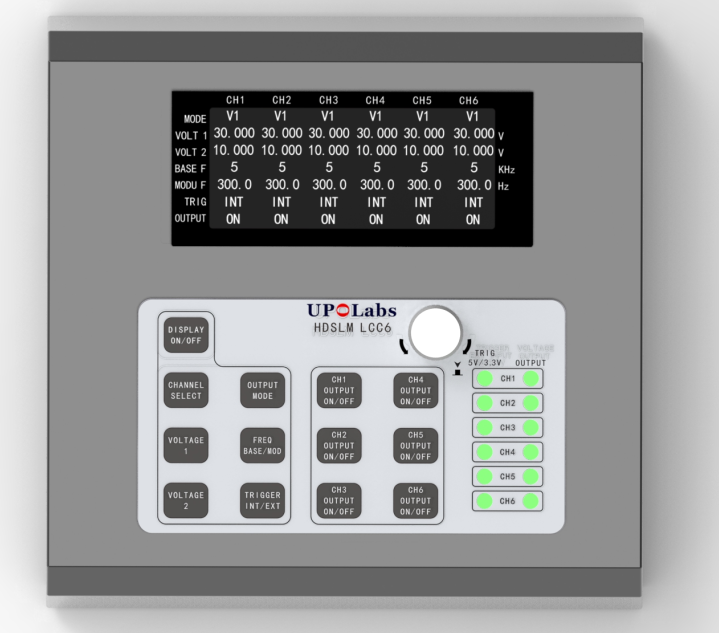

| output signal control | Front panel, key control | Front panel, key control | Software function control |
| Input trigger signal connector | BNC | 6-in-1 aviation plug, through custom cable to BNC | / |
| USB interface | USB Standard B Plug | USB Standard B Plug | USB Standard B Plug |
| power input | DC 12V | DC 12V | DC 12V |
| display | 3.8Inch,320x132,OLED | 3.8Inch,320x132,OLED | Reserved, SPI interface OLED |
Operating mode
HDSLM LCC has a total of four operating modes, namely high voltage, low voltage, internal modulation, and external modulation.
High voltage& low voltage&internal modulation and external modulation.
