Introduction

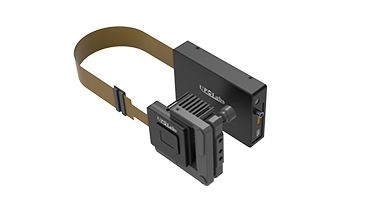

HDSLM80R Pro liquid crystal spatial light modulator consists of a driver, FPC cable and LCos thermal controller. Used withTEC controller and LETO TEC CONTROLLER software, the HDSLM 80R Pro SLM is allowed to set up the worktemperature of LCoS optical chip as demanded.
Specifications
| Type | Modulation Mode | Resolution | Frame Rate | Pixel Size | Bit Depth | Fill Factor | Amplitude Contrast | Phase Retardance | Wavelength |
| HDSLM80R Pro | Phase | 1920*1200 | 60Hz | 8μm | 8bit/10bit | ＞95% | / | ＞5.8π@532nm | 420~1100nm |
| HDSLM80R Pro-NIR | ＞2π@1064nm | 1064±100nm | |||||||
| HDSLM80R Pro-TEC | ＞2π@1550nm | 1550±100nm | |||||||
| HDSLM80R Pro-G | ＞2π@532nm | 532±50nm | |||||||
| HDSLM80RA Pro | Amplitude | 1000:1 | / | 420~1100nm |
Temperature Control System
The temperature setting of LCoS optical chip is determined by the thermal control system. The thermal control system consistsof LCoS thermal controller, TEC controller and LETO TEC CONTROLLER software those work together to achieve temperatureadjustment and temperature constant setting of LCoS optical chip. The thermal control system adopts modular structure allowingmodule replacement based on application needs.
| Thermal Control System | |
| Temperature range | 30℃~55℃ |
| Setting accuracy of target temperature | Within ±0.1℃ |
| Temperature range of work environment | Room temperature (typically 25℃) |
| Maximum incident laser power | 10W/cm2 (In passive cooling mode) |
 | • LCOS THERMAL CONTROLLER . At room temperature (typically 25℃), the work temperature of the LCoS optical chip backplane is allowed at any constant temperature value between 30℃ and 55℃, maximum to 65℃. . Utilize passive cooling fins for heat exchange, avoiding fan vibration generated by the air cooling mode. . Provides a two-dimensional adjustment frame to fine tune pitch/deflection angle of the LCoS optical chip. |
 | • TEC CONTROLLER . It is used for connection between the LCoS thermal controller and a computer, and to send commands to control the operation of the LCoS thermal controller. . The maximum working temperature is 65℃. |
 | • LETO TEC CONTROLLER SOFTWARE . Includes temperature setting of LCoS optical chip, algorithm adjustment, real-time display of temperature curve, recording temperature test records. . Read the temperature value of LCoS optical chip , set the temperature stable as demanded. |
Application
• Space optical communication
• Quantum research
• Cold atom control
• Other scenarios requiring high phase accuracy and stability
